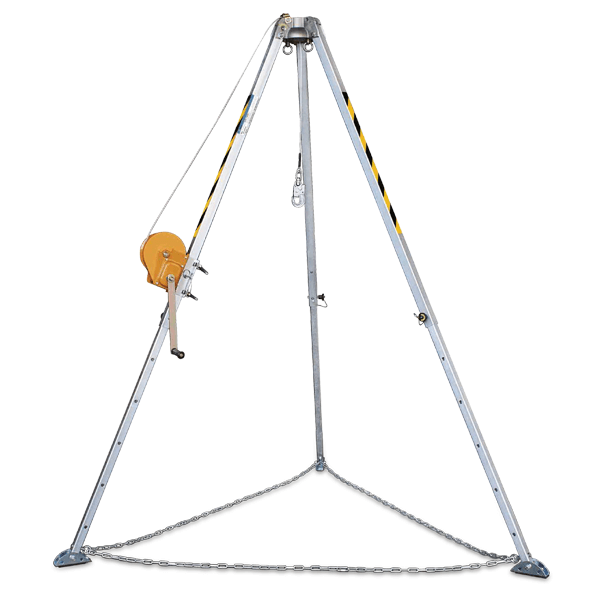

Mobile rescue device consisting of a tripod  and a rescue winch and designed for the access of people in confined spaces, wells, tanks,  hatches and other underground work where  protection against falls from heights is required

EN 795:2012 Type B
EN 1496:2017 Class A

The structure consists of three adjustable telescopic legs made of  anodized aluminum. The tripod base can be  assembled and disassembled quickly and easily without
any tools.

• Operating height: Max: 240 cm. Min: 135 cm.
• Diameter of use: Max: 210 cm. Min: 114 cm.
• 5mm galvanized steel cable.
• The device's anchor points have been successfully tested with a load of 100 kg
• Maximum lifting distance: 20 meters.
• Manual locking system.
• Total weight of the equipment: 33 kg

When this tripod is used in conjunction with the  manual winch, it is for rescue purposes only.
This device is for single-user use.
