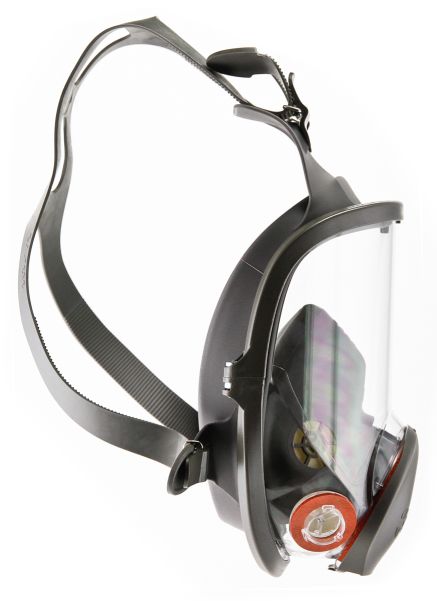

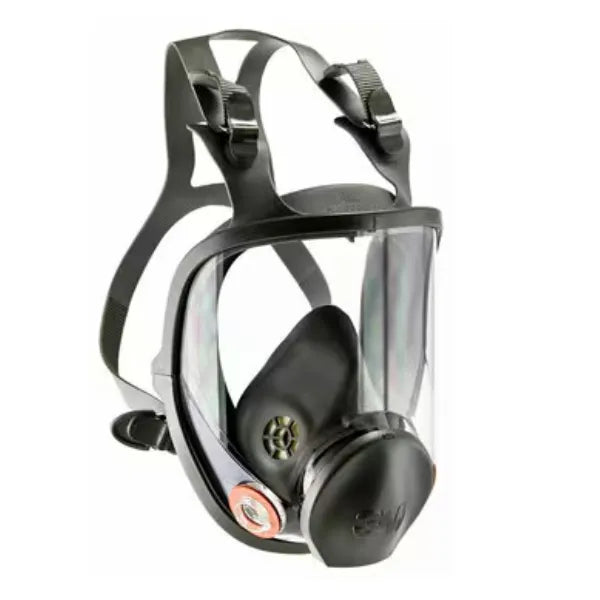

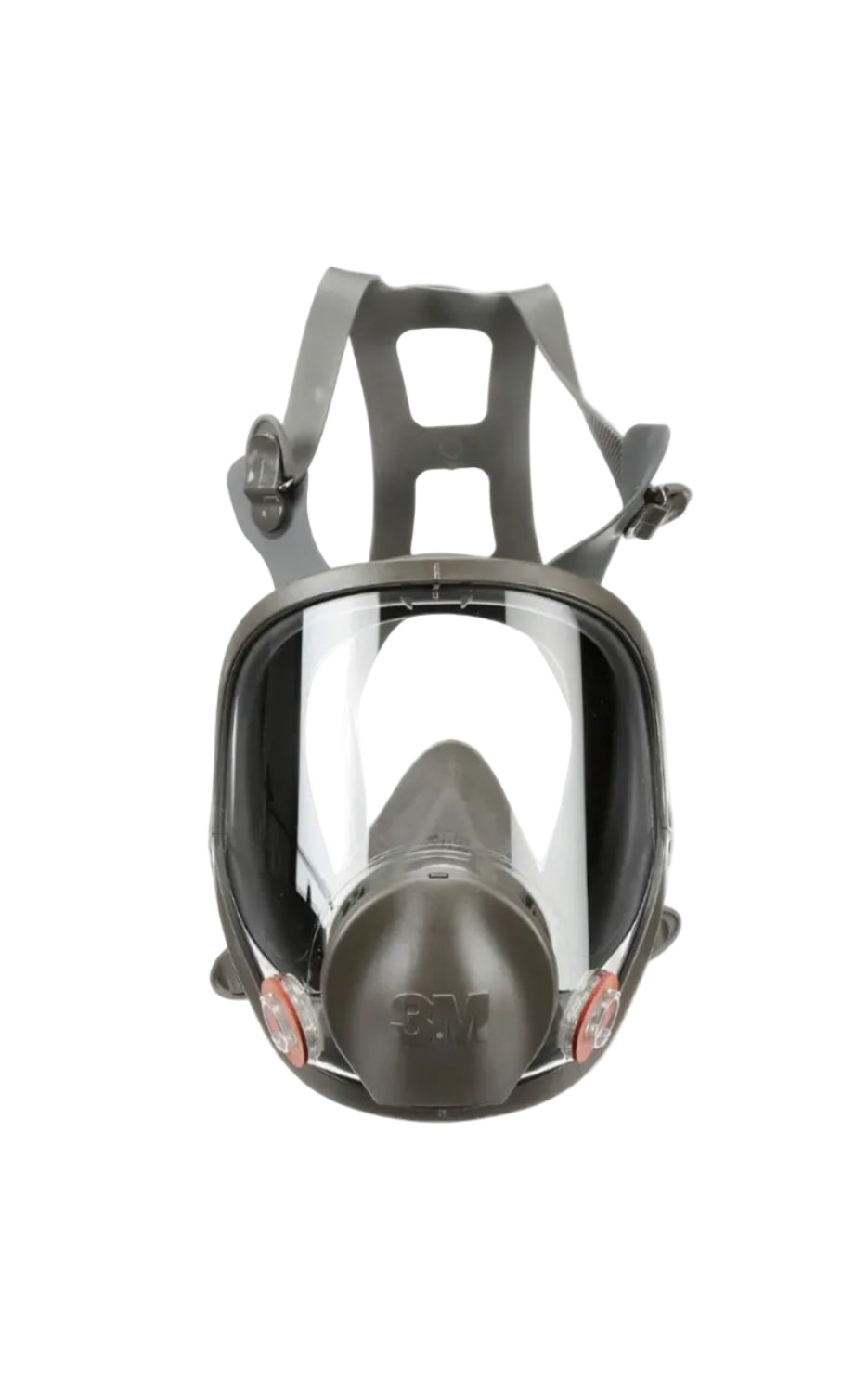

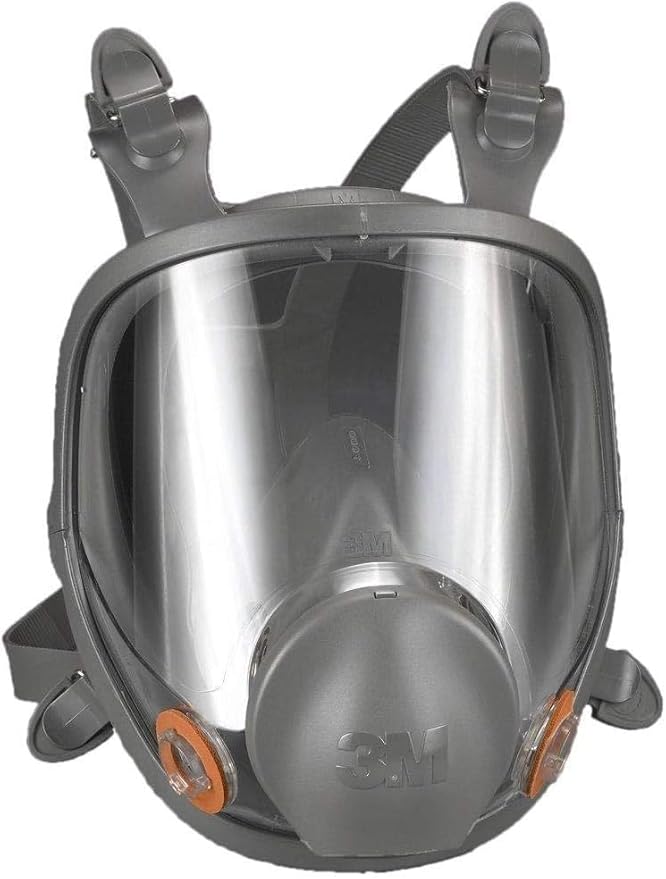

3M™ Reusable Full Face Respirator – Model 6800 (Medium)

The 3M™ Full Face Respirator 6800 is the highest level of reusable respiratory protection in 3M's 6000 Series — combining certified respiratory protection with certified eye and face protection in a single, unified facepiece. With a large polycarbonate lens, soft silicone face seal, Cool Flow™ Exhalation Valve, and four-point harness, the 6800 delivers superior coverage for professionals working in high-hazard chemical, petrochemical, and industrial environments. Filters and cartridges are sold separately.

Why Full Face? — The 6800 Advantage Over Half-Face

• Complete face and eye protection — eliminates the need for separate safety glasses or goggles in chemical splash environments
• P3-level particle protection — up to 100× the Permissible Exposure Limit (PEL) for particulates, versus 10× for half-face respirators
• No facial skin exposure — ideal for highly toxic atmospheres, chemical splashes, acid gases, and environments where skin contact is a hazard
• Better seal integrity — full perimeter silicone seal around the entire face provides a more secure fit in high-risk environments

Key Features

• Large polycarbonate panoramic lens — wide field of vision with scratch-resistant coating; meets ANSI Z87.1-2010 high-impact eye and face protection standard

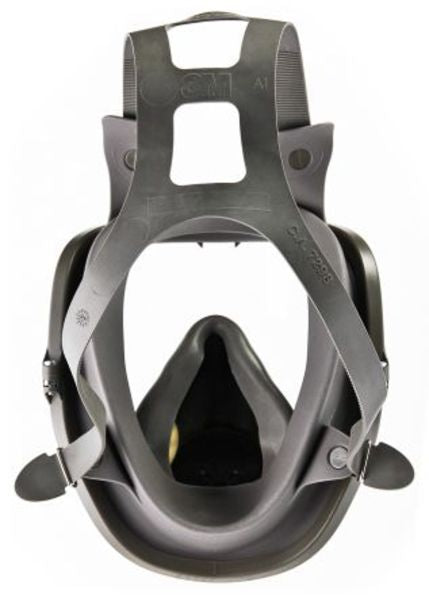

• Soft silicone face seal — lightweight, durable, conforms to facial contours for a secure airtight fit with minimal pressure points
• 3M™ Cool Flow™ Exhalation Valve — centre adapter directs exhaled breath and moisture downward, reducing heat and humidity build-up inside the facepiece
• Four-point head harness — balanced, adjustable strap system distributes weight evenly across the head for stable, comfortable fit during extended wear
• 3M™ Bayonet Connection System — quarter-turn lock accepts 3M 6000 Series cartridges and 2000/5000/7000 Series filters
• Supports APR (air-purifying), SA (supplied air), and PAPR (powered air-purifying) modes
• Fully disassemblable — no tools required; replacement parts available
• Easy to clean between uses

6800 vs Half-Face Respirators — Quick Comparison

Compatible Filters & Cartridges

• 3M™ 6000 Series Cartridges — organic vapour, acid gas, ammonia, multi-gas combinations
• 3M™ 2000 / 2200 Series Filters — particulate P2/P3
• 3M™ 5000 Series Filters — particulate pre-filters
• 3M™ 7000 Series / 7093 P100 Filter — combination and high-efficiency particulate
• 3M™ Dual Airline Systems — for supplied air applications
• 3M™ TR-600 / TR-800 PAPRs — powered air-purifying respirator compatibility

Protection Standard

Compliant with EN 136 (full face respirator standard). Meets ANSI Z87.1-2010 high-impact eye and face protection. NIOSH-approved for negative-pressure air-purifying and positive-pressure dual airline applications. When properly fitted with P3-rated filters: protection up to 100× PEL for particulates.

Ideal Applications

• Chemical and petrochemical plants — acid, solvent, and toxic vapour environments
• Oil and gas facilities — high-concentration hydrocarbon and H₂S exposure
• Hazardous material (HAZMAT) response and confined space entry
• Spray painting and automotive refinishing — face and eye protection combined
• Pharmaceutical manufacturing — highly toxic particulate and vapour control
• Asbestos and lead abatement
• Mould remediation
• Any environment requiring simultaneous respiratory AND eye protection

Full Specifications

• Brand: 3M
• Model: 6800
• Series: 3M™ 6000 Series Full Face Respirator
• Size: Medium (also available: 6700 Small / 6900 Large)
• Facepiece Material: Silicone
• Lens: Large scratch-resistant polycarbonate (ANSI Z87.1 high-impact)
• Valve: 3M™ Cool Flow™ Exhalation Valve (centre adapter)
• Harness: Four-point adjustable suspension
• Connection Type: Bayonet (¼-turn lock)
• Max Protection Level: P3 — up to 100× PEL (with full-face + P3 filters)
• Standards: EN 136 | ANSI Z87.1-2010 | NIOSH-approved
• SAP ID: 7100015051
• Includes: Facepiece only (filters/cartridges not included)
• SKU: FullFaceMask-3M-6800-Medium

⚠️ Important: Facepiece only — filters and cartridges must be purchased separately based on the specific hazards present. Always perform a quantitative fit test before use in high-hazard environments. Do not use in oxygen-deficient atmospheres (<19.5% O₂), IDLH conditions, or fire-fighting applications.
