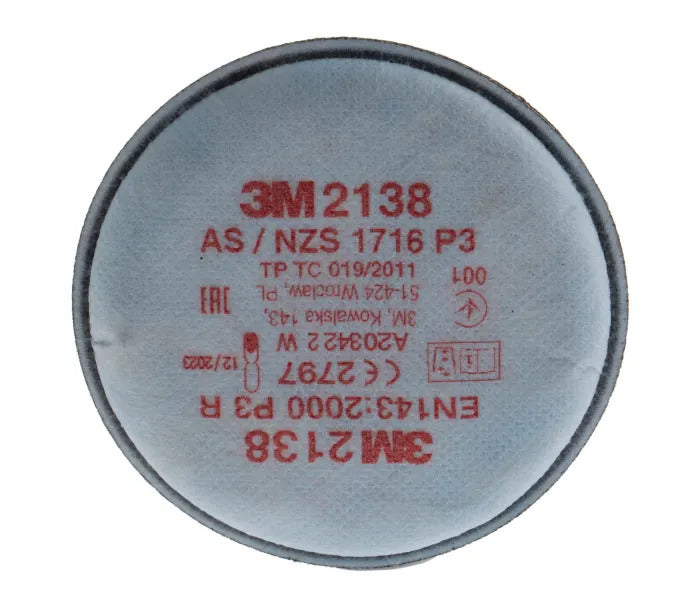

فلتر جسيمات 3M P3 للحماية من الأتربة مع تخفيف الروائح العضوية والغازات الحمضية - موديل 2138 | 3M P3 Particulate Filter with Nuisance OV/AG Relief - Model 2138

The 3M™ Particulate Filter 2138 (GP2/GP3) is an advanced combination filter from the 3M™ 2000 Series, providing particulate protection with the added benefit of nuisance-level organic vapour and acid gas relief. Designed for bayonet-connection 3M™ half-face and full-face respirators, the 2138 is the go-to filter for welding, grinding, pesticide spraying, and environments with mixed particulate and low-level vapour hazards.

Key Features

• GP2/GP3* dual-rated particulate filter — P2 protection on half-face respirators, P3 on full-face respirators
• Nuisance-level organic vapour & acid gas relief — active carbon layer provides additional relief at sub-WES concentrations
• 3M™ Bayonet Connection System — precise quarter-turn click-lock, fits all 3M bayonet-compatible facepieces
• Made from 3M high-performance filter media — exceptional filtration efficiency against dusts, mists, and fumes
• Low-profile twin filter design — well-balanced, low breathing resistance for extended comfortable wear
• Lightweight — only 30g per pair
• No natural rubber latex components

What It Protects Against

• Mechanically and thermally generated particulates — dusts, mists, and fumes
• Welding fume and ozone
• Polishing and grinding particles
• Pesticides and herbicides containing organic vapours (vapour pressure <1.3 Pa @ 25°C)
• Certain highly toxic particulates including Beryllium
• Nuisance-level acid gases and organic vapours below workplace exposure standard (WES)

Protection Level by Respirator Type

• Half-face respirator: P2 — up to 10× workplace exposure standard (WES) for particles
• Full-face respirator: P3 — up to 100× WES for particles
• Organic vapours (low vapour pressure <1.3 Pa): up to 10× WES
• Ozone: up to 10× WES

Compatible Respirators

• 3M™ Half Face Respirator 6000 Series (6100, 6200, 6300)
• 3M™ Half Face Respirator 6500 QL Series
• 3M™ Half Face Respirator 7500 Series (7501, 7502, 7503)
• 3M™ Full Face Respirator 6000 Series
• 3M™ Full Face Respirator FF-400 Series

Protection Standard

Complies with AS/NZS 1716:2012 — Respiratory Protective Devices. For use in accordance with AS/NZS 1715:2009. SAP ID: 7000029914.

Service Life & Storage

• Shelf life: 3 years from manufacture date (unopened) — store at –20°C to +25°C, below 80% RH
• After opening: discard within 6 months (active carbon capacity)
• Replace immediately if breathing resistance increases, odour is detected, or any part is damaged
• Store in airtight container to prolong filter life

Full Specifications

• Model: 3M™ 2138
• Brand: 3M
• Filter Rating: GP2/GP3*
• Type: Particulate + Nuisance OV/AG combination
• Connection: Bayonet (¼-turn lock)
• Weight: 30g per pair (nominal)
• Compatible Series: 3M 6000 / 6500 QL / 7500 / FF-400
• Standard: AS/NZS 1716:2012
• SAP ID: 7000029914
• Pack: Sold as a pair
• SKU: Filter-3M-2138-GP2-GP3

⚠️ Important: Do not use in oxygen-deficient atmospheres (<19.5% O₂), pure oxygen, or IDLH concentrations. P3 rating only achieved with a full-face respirator. Always check shelf life before use. Replace filter if breathing becomes difficult or odours are detected.
